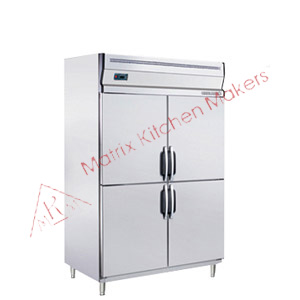

Upright Chiller

Blower System
Magnetic Solid Door

Chiller Normal Type: Suitable for drinks, milk, beer & medicines
Tested at ambient temperature of 38°C, with no load

CW: Castor Wheel

BF: Bullet Feet

Epoxy coated shelves are hard strong and easy to clean. Tested – 35°C durability.

The arc angular design on the base plate complies with the requirements of sanitation requirement

Digital adjustable. Temperature control. Certified by CE & UL standard

Technical Specifications

MODEL BS2DUC/C BS4DUC/C BS6DUC/C
NO. OF DOOR 2 DOOR 4 DOOR 6 DOOR
SYSTEM BLOWER BLOWER BLOWER
Temperature (Celcius)°C +2 to +8 +2 to +8 +2 to +8
External Dimension (mm) 660 x (760+30) x 2060 1300 x (760+30) x 2060 1940 x (760+30) x 2060
Internal Dimension(mm) 540 x 640 x 1460 1180 x 640 x 1460 1820 x 640 x 1460
Net Volume (Litres) 505 1010 1515
Voltage/Frequency(V/hz) 230V/1/50Hz 230V/1/50Hz 230V/1/50Hz
Weight (kgs) 97 168 201
Compressor (HP) 1/4 2/5 1/2
Refrigerant/ Grams R134a/380g R134a/460g R134a/500g
Defrost System Forced Air Circulation Forced Air Circulation Forced Air Circulation
Temperature Control Digital Digital Digital
Shelves (PVC) 4 8 12
Number of Clips 16 32 48
